Types of JIB Cranes

Type	Description
Wall-Mounted JIB Crane	Mounted on a wall or building column; saves floor space; rotation up to 180°

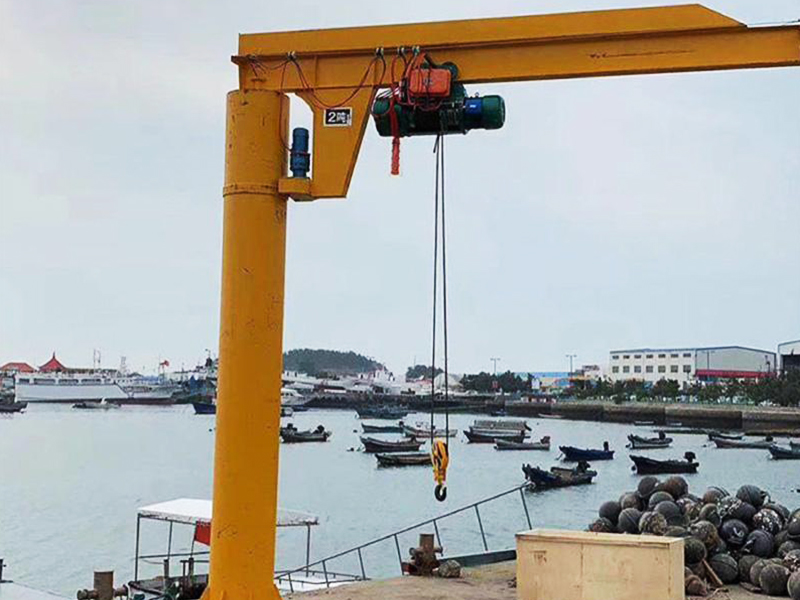

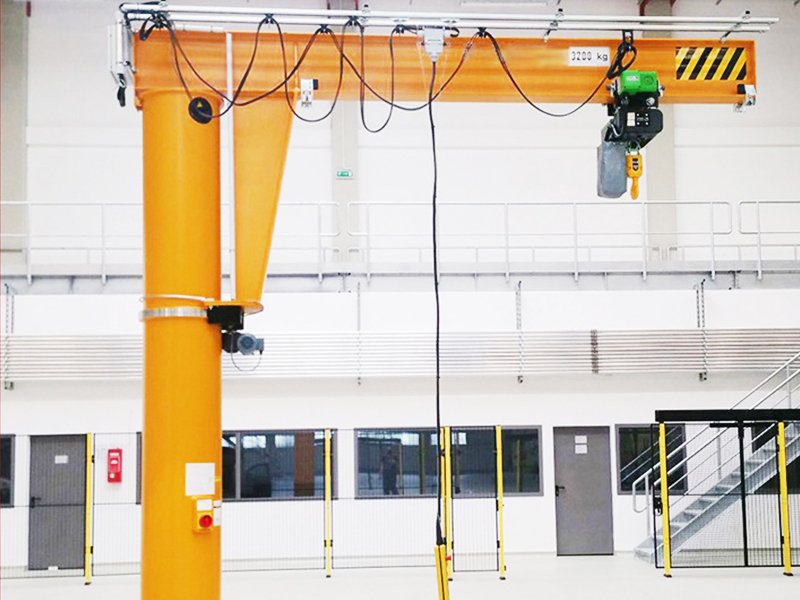

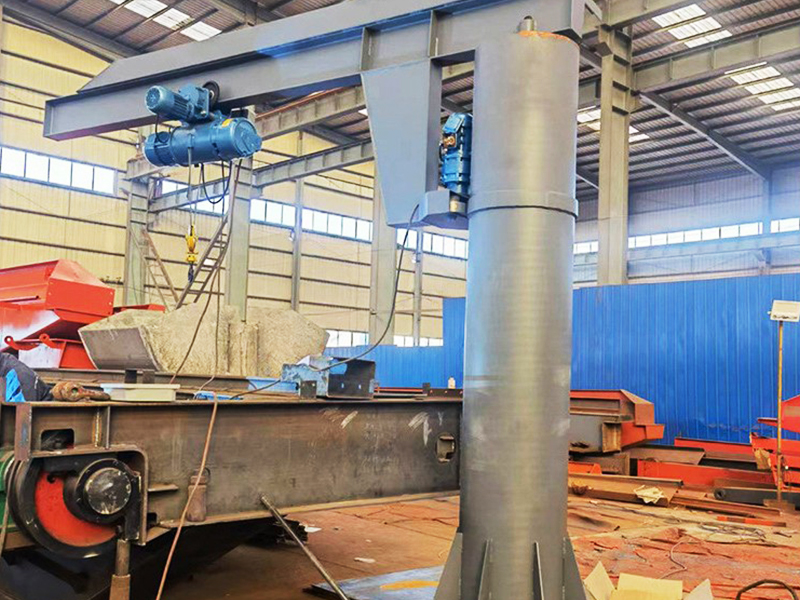

Pillar-Mounted JIB Crane	Free-standing design; installed on the floor; rotation up to 360°
Column-Mounted JIB Crane	Mounted on existing structural columns; often found in factories
Articulating JIB Crane	Features two rotating arms for complex reach; ideal for precision work

Main Components

Jib Arm (Boom) – Carries the hoist and moves the load horizontally

Mounting Base or Bracket – Floor, wall, or column-mounted base

Rotational Mechanism – Manual or motor-driven for rotating the jib

Electric Hoist – Chain or wire rope hoist for lifting

Trolley – Moves the hoist along the jib arm

Control System – Pendant or wireless remote controller

Power Supply – Flat cable system for safe, efficient energy transmission

Technical Specifications

Item	Specifications
Lifting Capacity	≤ 10 tons
Lifting Height	≤ 10 meters
Hoist Speed Control	Single Speed, Dual Speed, or Variable Speed
Power Supply	Flat Cable
Crane Control Options	Pendant Control / Remote Control
Hoist Options	Chain Hoist or Wire Rope Hoist
Girder Design	Profile or Box Girder
Temperature Range	-10°C to +40°C
Environment	Indoor (Standard) / Outdoor (Special Design Available)
Customization	Larger wall-mounted jib cranes available upon request

Key Features

Rotational Flexibility – Supports partial or full rotation (180°–360°)

Space Efficient – Great for work cells or areas with limited clearance

Quick Installation – Minimal infrastructure requirements

Multiple Hoist Options – Suitable for both wire rope and chain hoists

Durability – Designed for industrial work environments

Flexible Mounting – Floor, wall, or column installation options

Customizable Design – Load capacity, height, and span can be tailored

Advantages

High Efficiency – Perfect for high-frequency, short-distance lifts

Low Cost – More affordable than overhead or gantry cranes

Easy to Maintain – Fewer components, simple structure

Versatile Applications – Used in warehouses, docks, workshops, and more

Safe Operation – Easy to control with precise load positioning

Typical Applications

Warehouse loading areas

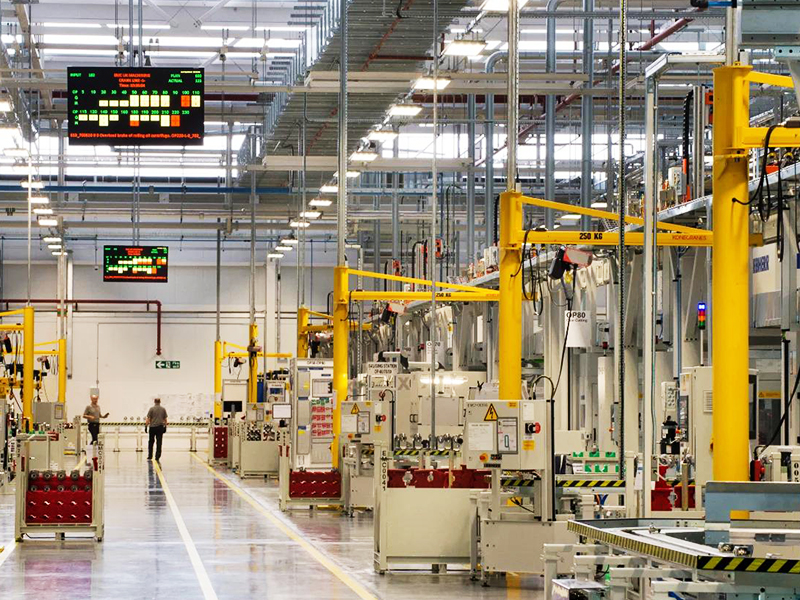

Production workstations

Machinery maintenance sites

Automotive repair shops

Marine and shipbuilding industries
